Picture this: You’ve just completed installing 5/8″ plywood sheathing for your home’s roof. You feel confident about your work, but after the first monsoon season, leaks begin to form, shingles loosen, and the roof starts to sag. All this because you didn’t use the right nails!
Choosing the correct roofing nail size for 5/8 sheathing is crucial for securing your roof against high winds, rain, and other harsh weather conditions. The wrong choice can lead to costly repairs, code violations, or even structural failure. On the other hand, the right nails ensure long-term durability and compliance with building standards.
| Sheathing Thickness | Recommended Nail Size | Nail Length | Shank Diameter | Minimum Penetration | Best Nail Type | Notes |
|---|---|---|---|---|---|---|
| 5/8″ Plywood/OSB | 8d (Common) | 2.5″ | 0.131″ | 1-1.5″ into truss | Ring shank, galvanized | Ideal for most home roofs; meets IRC R503.2.1.1; use 3″ edge spacing. |
| 5/8″ (High-Wind Zones) | 10d | 3″ | 0.148″ | 1.5″+ | Ring shank | Extra hold for storms (e.g., Lahore monsoons); check local codes. |
| 5/8″ + Asphalt Shingles | 1.5-1.75″ (Shingle nails) | 1.5-1.75″ | 11-12 gauge | 3/4″ min. into sheathing | Smooth/ring shank | For nailing shingles over sheathing; 4-6 per shingle. |
| 1/2″ (Comparison) | 8d | 2-2.5″ | 0.131″ | 1″ | Ring shank | Thinner decks need less length. |
| 3/4″ (Comparison) | 10d | 3″ | 0.148″ | 1.5″ | Ring shank | Thicker decks require longer nails. |

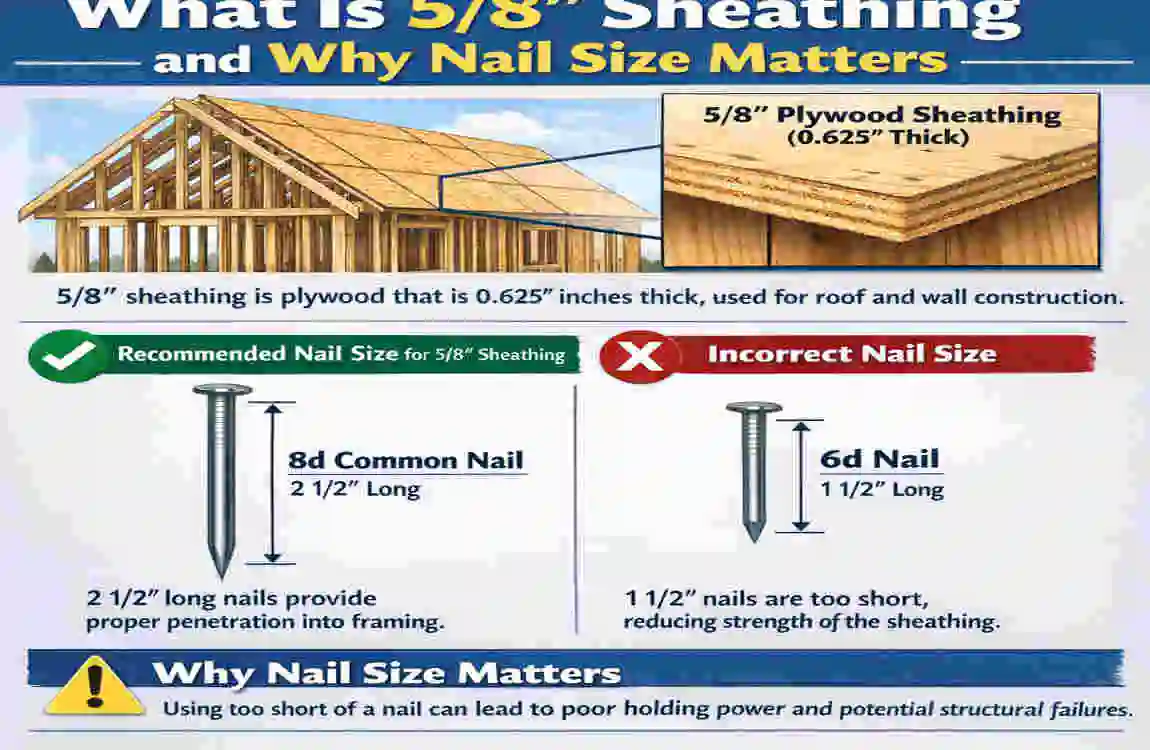

What Is 5/8 Sheathing and Why Nail Size Matters?
Understanding 5/8 Sheathing
5/8″ sheathing refers to plywood or oriented strand board (OSB) panels commonly used as a base layer in roofing. This thickness is stronger than the standard 1/2″ sheathing. It offers greater resistance to wind uplift and heavy loads, making it ideal for regions prone to storms or monsoons (such as Lahore).
These panels serve as a sturdy foundation for shingles, evenly distributing weight and preventing structural compromise. However, their effectiveness heavily depends on how securely they are nailed to the roof framework.
Why Nail Size Is Critical
The size of the nails you use determines how well they penetrate the sheathing and anchor into the trusses or rafters below. Nails that are too short won’t provide enough holding power. At the same time, nails that are too long could split the wood or create additional vulnerabilities.
Here’s why nail size matters:
- Wind Resistance: Nails must penetrate at least 3/4″ to 1″ into the trusses to withstand wind uplift forces.
- Building Codes Compliance: Using incorrect nail sizes can result in violations.
- Roof Longevity: Properly sized nails ensure a secure hold, extending the life of your roof.
Recommended Nail Sizes for 5/8 Sheathing
What Size Roofing Nails for 5/8 Sheathing?
For 5/8″ sheathing, the most commonly recommended nail size is 8d nails (2.5″ long, 0.131″ diameter). These nails penetrate deep enough into the trusses to meet building code requirements and withstand wind uplift.
Alternatives for Specific Conditions
Depending on the specific conditions of your roofing project, you might consider these alternatives:
- 10d Nails (3″): Ideal for high-wind areas or thicker shingles.
- 1.5″–1.75″ Nails: Suitable for shingles laid over thinner sheathing.
Nail Size Breakdown by Shingle Type
Shingle TypeRecommended Nail Size
Asphalt (3-tab) 1.25″–1.5″
Architectural Shingles 1.5″–2″
Types of Roofing Nails for Sheathing
Not all nails are created equal. The type of nail you choose matters as much as the size. Let’s explore the most common types of roofing nails:
Smooth Shank Nails
These are the most basic type of nails, offering moderate holding power. While they’re more affordable and easier to drive, they’re not ideal for areas with high winds or heavy rain.
Ring Shank Nails
Ring shank nails are the top choice for 5/8″ sheathing. Their ridged design provides superior holding power, making them highly resistant to pull-out forces.
Coil Roofing Nails
Used with pneumatic nail guns, coil nails are ideal for speeding up installation. They’re often paired with plastic caps for extra grip and weatherproofing.
Comparison Table: Nail Types
Nail Type Best For 5/8 Sheathing?ProsCons
Ring Shank Yes (Top Choice) Strongest hold Slightly more expensive
Smooth Shank Backup Option : Affordable, easy to use , less holding power
Coil Nails Yes (Pneumatic) Fast installation , requires nail gun
Building Codes and Standards
Essential Requirements for 5/8 Sheathing Nails
Building codes such as the International Residential Code (IRC) and the International Building Code (IBC) mandate specific nail sizes for roof sheathing. For 5/8″ sheathing, nails must penetrate:
- At least 3/4″ into the roof deck or
- 1″ into the trusses/rafters.
Local Considerations
In regions like Lahore, where monsoons bring strong winds and heavy rainfall, it’s advisable to go beyond the minimum requirements. Using longer nails (like 10d) ensures extra security in high-velocity zones.
FAQ: Is a 1.25″ nail enough for 5/8″ sheathing?
No, 1.25″ nails are too short and won’t meet code requirements for secure roofing.
Step-by-Step Installation Guide
Proper installation is key to ensuring your roof stays secure and weatherproof. Follow these steps:
- Preparation
- Inspect the 5/8″ sheathing panels for moisture or damage.
- Ensure the panels are properly aligned and spaced.
- Nail Spacing
- Along the edges: Space nails 3 inches apart.
- In the field (center): Space nails 6-12 inches apart.
- Nailing Technique
- Use 8d nails (2.5″) for the best penetration into trusses.
- Drive nails flush with the surface without overdriving or leaving them loose.
- Safety Tips
- Always wear gloves and goggles during installation.
- Use a pneumatic nailer for faster, more consistent results.
Common Mistakes and How to Avoid Them
Even experienced roofers can make mistakes. Here are some common errors and how to avoid them:
MistakeSolution
Using short nails, switch to 8d (2.5″) nails.
Overdriving nails. Adjust pneumatic nailer settings.
Ignore spacing, follow. recommended patterns (3″ edges, 6-12″ field).
Cost Comparison and Where to Buy
Average Costs
- 8d Nails (2.5″): PKR 500–800 for a box of 1,000 nails.
- Ring Shank Nails: Slightly higher at PKR 600–900 per box.
Long-Term Savings
Using the correct nails prevents costly repairs. For example, improperly nailed roofs can lead to leaks, which may cost PKR 50,000+ to fix.
FAQs
What size roofing nails for 5/8 sheathing?
The recommended size is 8d nails (2.5″) to ensure proper penetration and hold.
Are ring-shank nails necessary for 5/8 sheathing?
While not mandatory, they offer 20% greater holding power than smooth-shank nails.
Can I use a nail gun for 5/8 sheathing?
Yes, but ensure the nail gun is set to drive nails flush without overdriving.
