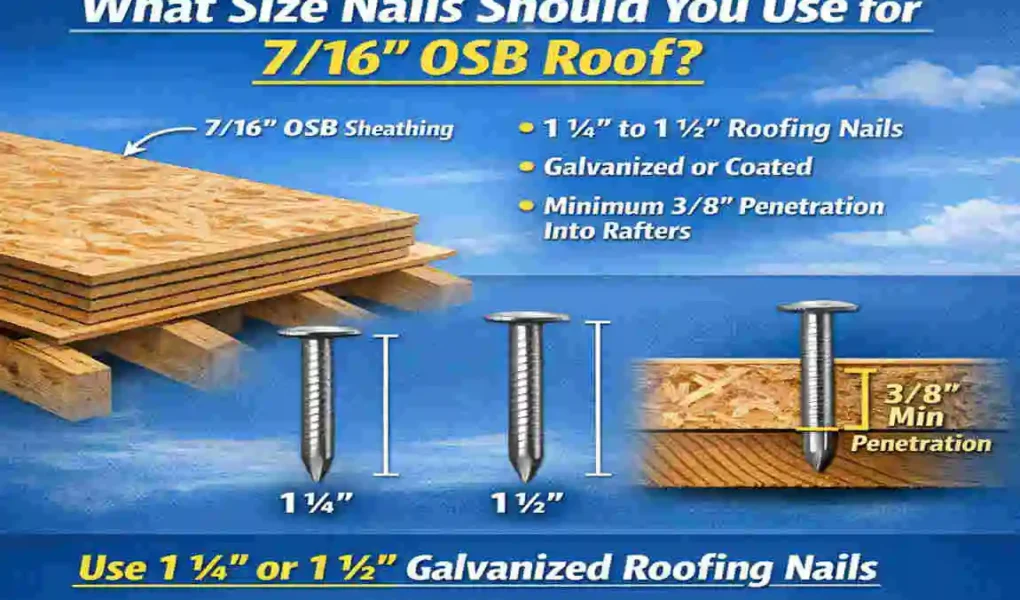

Imagine this: You’re a DIY enthusiast eager to install roof sheathing and create a durable, wind-resistant structure. But then comes the question: what size nails should you use for 7/16 OSB roof sheathing? This is a critical decision, as improper nailing is responsible for approximately 30% of roof failures.
If you’re working with 7/16 OSB (oriented strand board), you’re not alone—it’s a popular choice for roofing, thanks to its cost-effectiveness and strength. However, to ensure a solid roof, you need to choose the right nail size, typically between 1.25 and 2 inches, depending on your application.
| Sheathing Use | Recommended Nail Size | Shank Type | Min. Penetration | Notes |
|---|---|---|---|---|
| OSB to Rafters | 1.5-2″ (8d common) | Ring shank | Full through + 3/4″ into framing | Standard for 16-24″ o.c. spacing |
| High-Wind Zones | 2-2.5″ (10d) | Ring shank, 0.131″ dia. | Full through + 1″ into framing | IBC/IRC for uplift resistance |
| Shingles over OSB | 1-1.25″ | Smooth/ring, 11-12 gauge | 3/4″ min. into OSB | Galvanized; 6 per shingle |
| Coastal/Heavy Duty | 2.5″ | Hot-dipped galvanized | Full through panel | Avoid smooth shank for pullout |
Understanding 7/16 OSB Roof Sheathing
What Is 7/16 OSB?
Oriented strand board (OSB) is a manufactured wood product made by compressing layers of wood strands with adhesives. The 7/16-inch thickness refers to a specific panel size commonly used for roof sheathing. OSB is engineered for strength and uniformity, making it a go-to material for roofing projects.
Key Features of 7/16 OSB:
- Thickness: 0.4375 inches (slightly less than half an inch).
- Panel Size: Standard 4×8 feet.
- Span Rating: 24/16, meaning it’s suitable for roof spans of up to 24 inches on center.
- Load Capacity: It can handle live roof loads of 40-50 pounds per square foot (psf).
Comparison with Plywood: OSB is often preferred to plywood because it’s cheaper and provides more uniform strength. However, it’s more susceptible to moisture damage, so proper nailing and sealing are crucial.
Common Roof Applications
7/16 OSB is widely used in the following roofing applications:
- Sheathing Base for Shingles: Often installed underneath asphalt shingles to provide a sturdy base.
- Metal Roof Support: Used as a substrate for metal roofing systems.
Pros of 7/16 OSB:
- Cost-effective, making it an affordable option for large roofing projects.
- Square edges simplify installation and alignment.
Cons:
- Requires precise nailing to prevent splitting or blow-through.
- It can swell or weaken if exposed to prolonged moisture.
Feature7/16 OSB Specs
Thickness 0.4375 inches
Panel Size 4×8 ft standard
Roof Span 24 inches on center (o.c.)
Load Capacity 40-50 psf live load

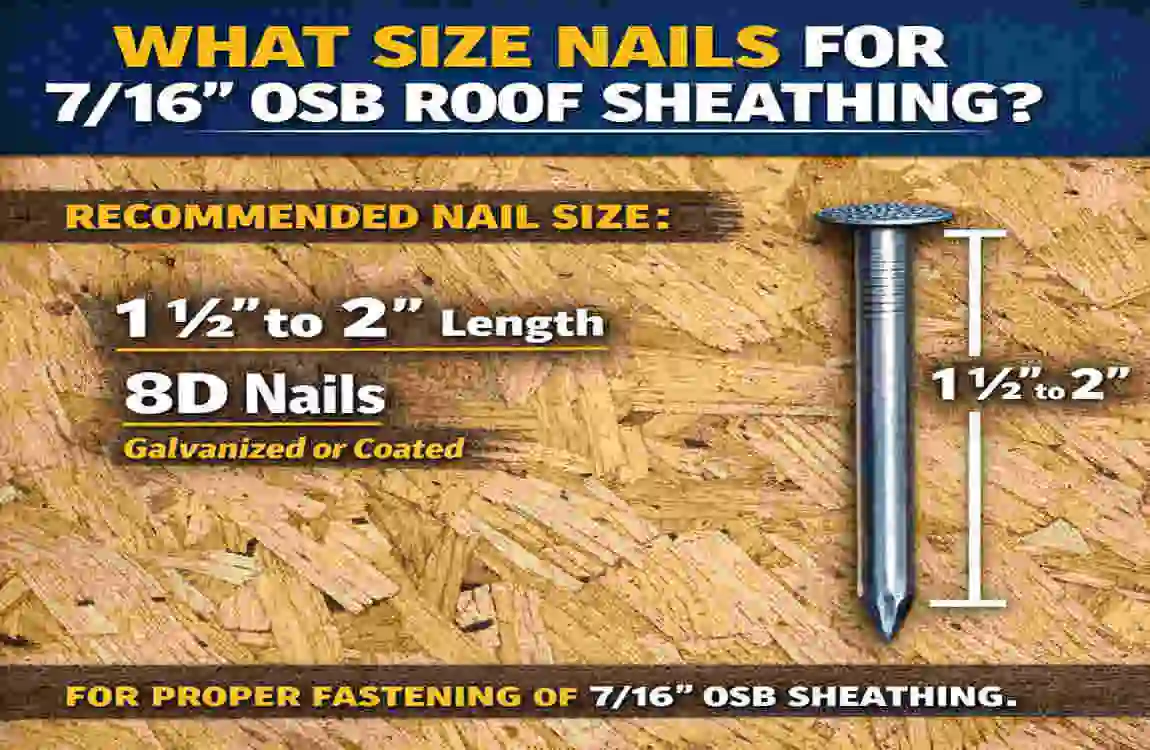

Nail Size Recommendations for 7/16 OSB
Ideal Length for Full Penetration
When nailing 7/16 OSB roof sheathing, the primary goal is to ensure full penetration of the nail into the rafters or trusses. Here’s the rule of thumb:
- Use 1.25-inch nails as a minimum size for asphalt shingles over OSB.
- Use 1.5- to 2-inch nails to fasten sheathing directly to rafters, ensuring at least 3/4-inch penetration or full-through-panel penetration.

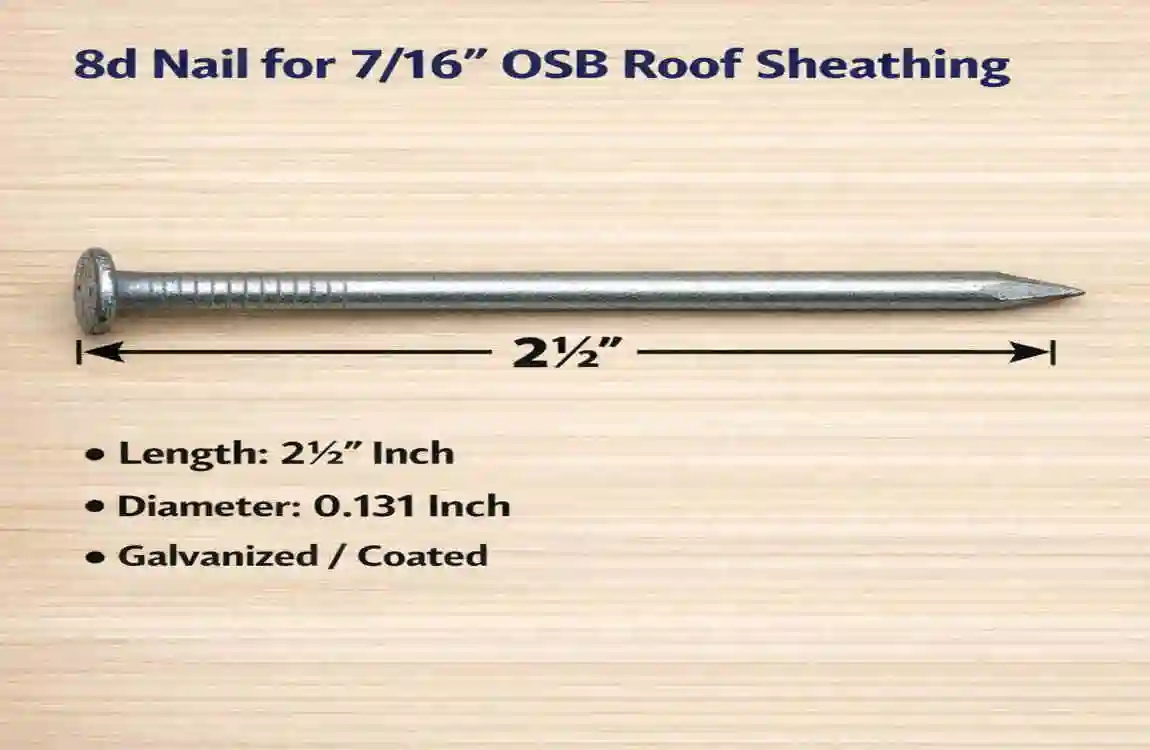

For structural framing, 8d nails (2.5 inches) are commonly recommended to provide maximum holding power.
By Nail Type
Different nail types serve different purposes when working with 7/16 OSB sheathing.
- Roofing Nails (for Shingles on OSB):
- Length: 1 to 1.25 inches.
- Material: Galvanized or stainless steel to resist corrosion.
- Gauge: 11-12 gauge shank.
- Sheathing Nails (OSB to Rafters):
- Length: 1.5 to 2 inches.
- Type: Ring shank nails for better grip and pull-out resistance.
- Alternatives for High-Wind Zones:
- Screws: Use 2-inch screws for areas prone to hurricanes or strong winds.
- Pneumatic Nails: Opt for 2.5-inch collated nails for fast and secure installation.
Sheathing ThicknessRecommended Nail Length
7/16″ OSB 1.25-2.”
5/8″ Plywood 1.5-1.75.”
3/4″ Decking 2-2.5.”
Building Code Requirements
IRC Guidelines Updates
The International Residential Code (IRC) provides clear rules for nailing roof sheathing:
- Nails must penetrate at least 3/4 inch into framing members or pass fully through thinner materials, such as 7/16 OSB.
- For shingles, use 6 nails per shingle.
- Edge Spacing: Nails should be spaced 4-6 inches apart along panel edges.
In high-wind zones, the International Building Code (IBC) suggests using longer nails (e.g., 2 inches) to enhance wind resistance.
Regional Variations
Building codes can vary depending on your location:
- United States: 1.25-inch nails are the minimum requirement for most regions.
- Canada: 2.5-inch nails spaced at 6 inches on center (o.c.) are common for a stronger hold.
Always consult your local Authority Having Jurisdiction (AHJ) for specific requirements.
Nailing Patterns and Schedules
Standard Roof Nailing Schedule
The following nailing schedule is recommended for 7/16 OSB roof sheathing:
- Field (Interior of Panel): Nails spaced 6 inches o.c.
- Edges (Perimeter of Panel): Nails spaced 3-4 inches o.c.
- Panel Ends: Keep nails 2-1/2 inches away from panel edges to prevent splitting.
Location Nail Spacing
Panel Field 6 inches o.c.
Edges 3-4 inches o.c.
Perimeter 4 inches o.c.
Tools and Techniques
Using the right tools ensures accuracy and efficiency:
- Pneumatic Nailers: Set pressure at 70-90 PSI to avoid overdriving nails.
- Manual Hammering: Ensure nails are flush with the OSB surface but not overdriven.
Common Mistakes and Fixes
Even experienced DIYers can make mistakes when nailing OSB sheathing. Here are some common errors and how to fix them:
- Using Nails That Are Too Short: Nails shorter than 1 inch may fail to penetrate deeply, causing weak connections.
- Overdriving Nails: Excessive pressure can cause dimpling or cracks in the OSB.
- Wrong Nail Type: Smooth-shank nails may pull out over time, especially in windy areas.
Fix: Always use ring shank nails or screws for better grip.
Material and Coating Guide
The durability of your roof depends on the type of nails used. Here’s a quick guide:
- Galvanized Nails: Ideal for standard roofing applications due to their rust resistance.
- Stainless Steel Nails: Best for coastal areas with high humidity.
FAQs
What size nails for 7/16 OSB roof sheathing?
Use 1.25 to 2-inch nails, depending on the application.
Are 8d nails suitable for OSB?
Yes, 8d nails (2.5 inches) provide solid structural hold.
Nails or staples for OSB sheathing?
Nails are preferred for their superior pull-out resistance.
